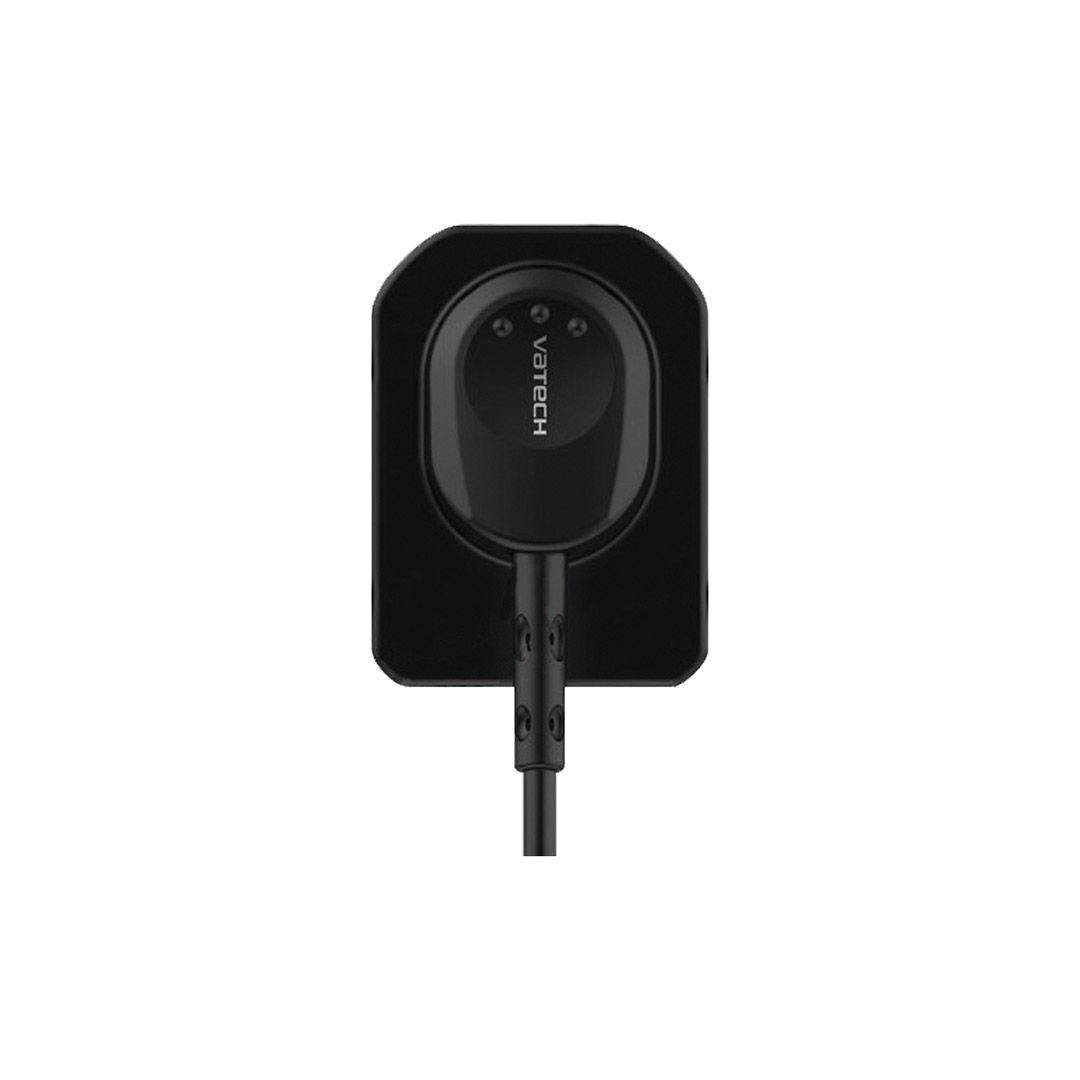

Vatech EzSensor Classic Intraoral Sensor
EzSensor Classic consistently provides high resolution and clear images for accurate diagnosis and treatment planning.
Ergonomic design available in three sizes
The EzSensor Classic features a slim design with rounded corners for easy positioning to ensure patient comfort. The rounded corner design allows for comfortable placement against soft tissue. Ergonomically designed sensors in 3 different sizes meet the needs of all cases. The rounded edges provides the best possible comfort for patients while Vatech’s unique size 1.5 sensor fits almost all patients. Select the right sized sensor from the three size options, 1.0 / 1.5 / 2.0 to improve patient comfort.
Ultra-slim for easy positioning
Slim, CMOS ensures that patients are as comfortable as possible. Placing and positioning a sensor in the patient’s mouth remains challenging however Vatech have improved digital sensor technology to achieve greater patient comfort. Vatech R&D have found the ideal thickness to minimise discomfort while leading technology maintains the CMOS chip.
Trustworthy image
EzSensor Classic provides images for accurate diagnosis and treatment planning.
EzSensor Classic covers a wide range of exposure settings, capturing a consistent and diagnosable image. With Vatech’s highly sensitivity sensors, you can capture a diagnosable image under any conditions, even when using old X-Ray sources while patients benefit from lower radiation. Thanks to the high contrast, it is possible to look inside different density’s (opacity) in detail. Moreover, you can distinguish interproximal caries from the image easily.
Durability
The EzSensor Classic’s unique design makes it extremely durable. The exterior is made of rugged aluminium and the interior is designed to absorb external shocks. Furthermore, a reinforced, flexible cable attachment protects the sensor from excessive bending.
In Stock
Code: VTCS0000329
Categories: Imaging,Equipment,Digital Intraoral Sensors,Digital Intraoral Sensors
Tag: Vatech
Brand
Brand | Vatech |
---|
Description
Specifications
Detector: CMOS
Pixel Size (µm): 29.6
Theoretical Resolution: 17lp/mm
Dynamic Range: 12 bit
Active Area (WxL): Size 1.0 20.0mm x 30.0mm
Active Area (WxL): Size 1.5 24.0mm x 33.0mm
Active Area (WxL): Size 2.0 26.0mm x 36.0mm
Dimensions (WxLxT): Size 1.0 25.4mm x 36.8mm x 4.80mm

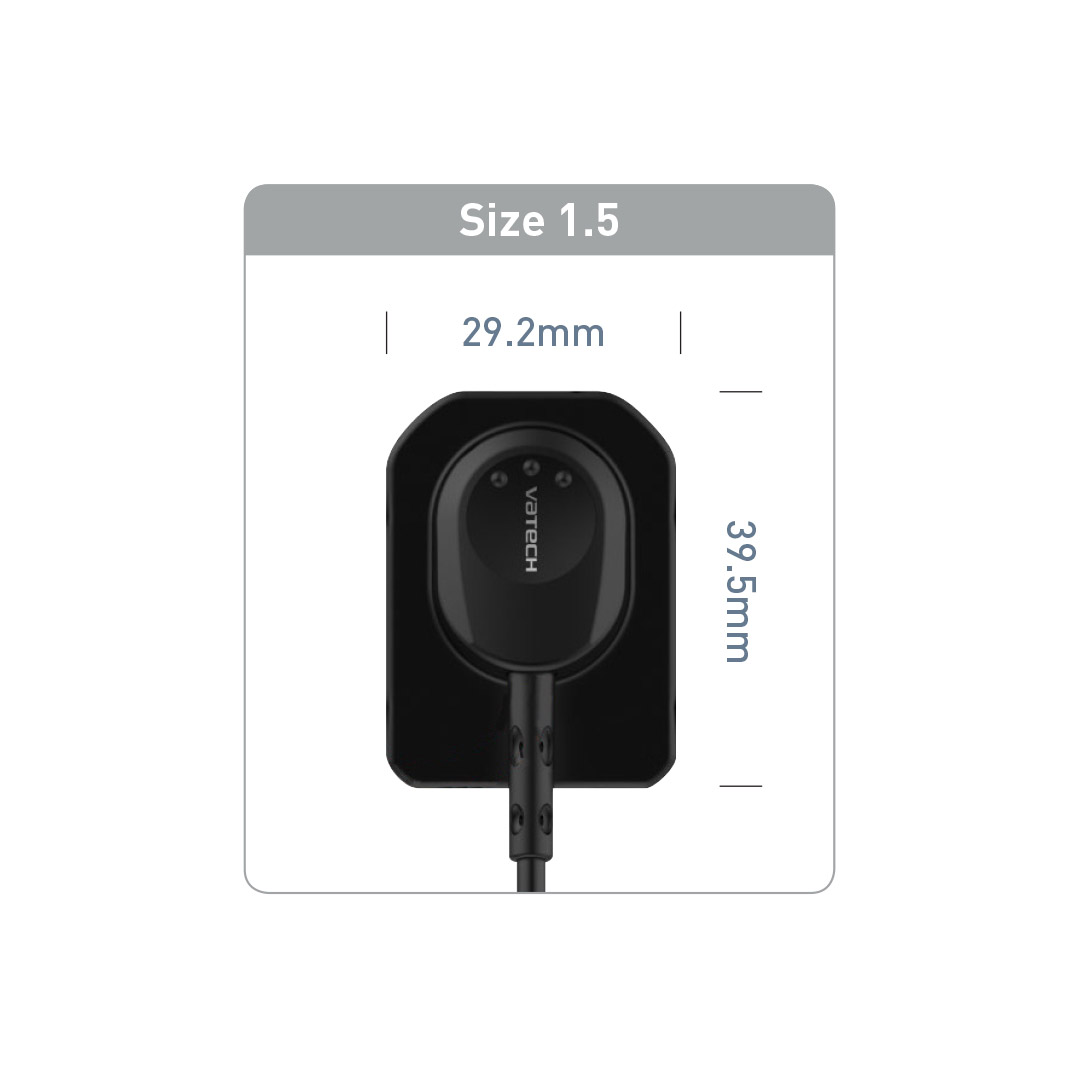

Dimensions (WxLxT): Size 1.5 29.2mm x 39.5mm x 4.80mm
Dimensions (WxLxT): Size 2.0 31.3mm x 42.9mm x 4.80mm
Thickness: 4.80mm
Cable Length: 2.7m
