Vatech

Expand Your Digital Workflow
Bring simplicity to your workday with an ergonomically designed lightweight scanner. The EzScan is a digital 3D imaging solution is designed to bring simplicity to your work. It is presented as a turn-key solution that takes under 10 minutes to unbox and setup. The solution includes a pre-calibrated scanner, three autoclavable tips, and an optional optimised acquisition PC with the EzScan software pre-installed to ensure that you spend less time installing and more time scanning. The EzScan-i features an intuitive, user-friendly interface that makes it easier than ever to meet all of your restorative, orthodontic, and implant needs.

Simple and Intuitive Interface for an Improved Scanning Experience

• Clear and intuitive interface for ease of use
• Essential functionality for many treatment plans

Case Sharing

• EzScan Cloud is an easy-to-use file-sharing module for sharing digital impressions with the lab of your choice

Quick Scan Time for Workflow Efficiency

• Full arch scans in under 2 minutes from start to finish

Open Platform with No Ongoing Fees

• Easy to export to your treatment planning software or to send it to the lab of your choice
• Maximize your ROI with no ongoing fees

Features & Benefits

• 59 seconds for a single arch scan
• 360° rotation
• Autoclavable tips may be autoclaved up to 250 times
• Small and lightweight, only 150gm

Specifications
FOV: 12mm x 14mm
Scan Time (Full Arch): Less than 2 minutes
STL Converting Time (Full Arch): Less than 1 minute
Weight: 150gm
Features: True Colour / Powder Free
File Output: STL, PLY, OBJ, DWOS
System: Open
Connector: USB Type-A

Expand your digital workflow.

A small, light and compact designed scanner
Vatech has designed as a user-friendly scanner. Vatech VSP is small and light so it can be set up in a small clinic or space easily and efficiently.

As a high end device, Vatech VSP, has a 4-inch LCD touch screen which provides the largest image preview image. The touch screen offers quick and easy access to features.

Moreover, ethernet cable enables rapid image transfer from scanner to PC. The Vatech VSP is the simple, fast, and easy way to view and diagnose patient images chairside.

Specifications
Supported Image Plate Sizes: 0, 1, 2 & 3
Resolution (lp/mm): Super Resolution 20lp/mm, High Resolution 10lp/mm
Display: 4-inch touch screen
Interface: Ethernet
Multi User Practices: Yes
Sleep Mode: Yes
Weight: 3.3kg
Dimensions (HxWxD): 233mm x 141mm x 191.5mm

Lightweight, Portable Innovation
The world’s first CNT portable X-Ray for faster workflow

Highlights

• It all starts with weight innovation
• Double scatter shield in one
• Smart angulation for optimal results
• One dial for all functions

Weight innovation with CNT (Carbon Nano Technology)
The world’s first dental application of Carbon Nano Technology. The EzRay Air Portable is a lightweight portable x-ray device designed for easy handling and stable positioning for optimal image quality on your intraoral x-rays.

Essential safety, double scatter shield design for operator safety
Internal shielding, the internal radiation shielding is perfectly designed to protect the operator from radiation leakage.

External backscatter shielding
Exposure to radiation results from the beam interacting with the surface of the patient, causing radiation to bounce off as radiation scatters in different directions. The backscatter shield significantly reduces the amount of radiation being reflected.

Lower cooldown times, faster workflow
Due to unique efficiencies in carbon-nano technology which aren’t available in traditional x-ray generation methods, the EzRay Air Portable has almost a 75% reduction in cooldown time between shots when compared to leading competitive devices. This allows users to spend less time waiting for their x-ray to be ready and more time in treatment, diagnosis and patient care.

No warmup time
With no initial start-up delay for conventional x-ray sources to warm up, the EzRay Air Portable’s Carbon Nano Technology allows for quicker exposure after you initially turn on the device, allowing for optimal workflow.

The smart essentials for your clinic

• Weight innovation
• Smart angulation for optimal results
• Intuitive & convenient operating panel
• One dial for all functions
• 2.4kg lightweight tube head for stable and safe use
• Compact design for easy use

Weight innovation with CNT (Carbon Nano Technology)
The wall mounted EzRay Air Wall is a lightweight x-ray device designed for easy handling and stable positioning for optimal image quality on your intraoral x-rays. The EzRay Air Wall’s lightweight tube head provides users with a stable and easy to use x-ray source which maximises image clarity and optimises workflow.

Smart dial for all functions
The operating panel located on the tube head creates a much simpler and much faster workflow. Using the smart dial, practitioners will notice a decrease in preparation time and less of a need to remember complicated control buttons and configurations.

Secure clear images with 0.4mm focal spot
Compared to other intraoral x-rays on the market, the EzRay Air Wall provides optimal image quality and additional diagnostic value with a 0.4mm focal spot.

Ergonomic design for safety and efficiency
Round shape design, the EzRay Air adds a modern and chic touch to your clinic.

Strong and stable arm
The strong and stable x-ray unit arm allows accurate positioning of the 2.4kg lightweight tube head, aiding in the provision of distortion-free images.

Ergonomic one-handed grip
A hand grip provides an easy method of positioning the EzRay Air quickly and accurately.

EzSensor Classic consistently provides high resolution and clear images for accurate diagnosis and treatment planning.

Ergonomic design available in three sizes
The EzSensor Classic features a slim design with rounded corners for easy positioning to ensure patient comfort. The rounded corner design allows for comfortable placement against soft tissue. Ergonomically designed sensors in 3 different sizes meet the needs of all cases. The rounded edges provides the best possible comfort for patients while Vatech’s unique size 1.5 sensor fits almost all patients. Select the right sized sensor from the three size options, 1.0 / 1.5 / 2.0 to improve patient comfort.

Ultra-slim for easy positioning
Slim, CMOS ensures that patients are as comfortable as possible. Placing and positioning a sensor in the patient’s mouth remains challenging however Vatech have improved digital sensor technology to achieve greater patient comfort. Vatech R&D have found the ideal thickness to minimise discomfort while leading technology maintains the CMOS chip.

Trustworthy image
EzSensor Classic provides images for accurate diagnosis and treatment planning.

EzSensor Classic covers a wide range of exposure settings, capturing a consistent and diagnosable image. With Vatech’s highly sensitivity sensors, you can capture a diagnosable image under any conditions, even when using old X-Ray sources while patients benefit from lower radiation. Thanks to the high contrast, it is possible to look inside different density’s (opacity) in detail. Moreover, you can distinguish interproximal caries from the image easily.

Durability
The EzSensor Classic’s unique design makes it extremely durable. The exterior is made of rugged aluminium and the interior is designed to absorb external shocks. Furthermore, a reinforced, flexible cable attachment protects the sensor from excessive bending.

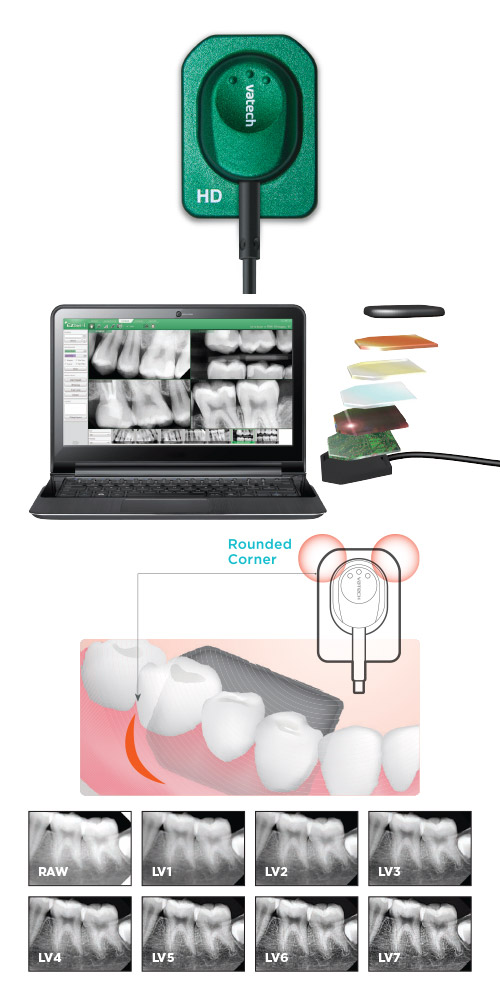

Make your operation easy, fast and professional with the Vatech EzSensor HD intraoral sensor.

33.78 lp/mm experience the high resolution
EzSensor HD provides expert images for endodontists and implantologists when you choose the “high resolution mode”. There is no image degradation caused by magnification, greatly benefiting you when you check ROI which requires accurate diagnosis.

EzSensor HD will upgrade the existing intraoral sensor standards
How did Vatech create such a high quality sensor?

• New image processing algorithm applied
• Well balanced imaging factors – resolution, sensitivity, and noise
• In-house manufacturing components (from CMOS design to viewer software)

Innovation in durability – upgraded usability and increased value
Enhanced durability through cable strain relief. EzSensor HD is designed to prevent any kind of damage in everyday use. Based on actual usage, the Vatech durability test includes bending up, down, left, right side and bending up to four times.

Complete protection against dust and water
EzSensor HD rated at IP68, the highest level of the Ingress Protection (IP)

Better is not enough, be different.

Pain relief & easy positioning
When compared to rigid intraoral sensors, the level of pain has been decreased by 40%.

Due to reduced pain and discomfort for the patient, staff are able to accurately position the intraoral sensor on the region of interest for diagnosis.

The smallest pixel
The Vatech EzSensor Soft provides consistently higher resolution and clearer images for accurate diagnosis and treatment planning.

• EzSensor Soft is different, it’s 14.8 µm!
• Accurate diagnostic images will be captured with the world’s smallest pixel size
• At 14.8 µm, the EzSensor Soft has a theoretical resolution of 33.7lp/mm

Drop resistant – durable sensor materials
Usually, when a staff member accidentally drops or steps on a sensor, it succumbs to accidental damage. EzSensor Soft is different, it has a soft exterior! The EzSensor Soft’s rubberlike exterior can withstand external impact if the sensor is dropped, reducing the risk of damage.

Your partner in digital success.

Superior image quality

• Optimal image for accurate diagnosis

Two dedicated sensors

• Specialised sensors for Pano & Ceph
• Streamlined workflow and prolonged lifespan of sensors

User friendly software, EzDent-i

• Complete diagnostic and consultation solution

Modern and Compact Design

• Raise the design value of your clinic
• Save installation space in your clinic

The advanced imaging solution for accurate dental diagnosis
The PaX-i provides the most precise and high quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech, increasing your diagnostic accuracy for improved treatment planning and patient satisfaction.

Cephalometric (Scan Ceph)
The PaX-i provides optimal images exclusively designed for orthodontics. There are two image sizes available, Lateral and Full Lateral, allowing you to choose your image size based on your diagnostic needs.

Two dedicated sensors
The PaX-i offers two dedicated and embedded sensors for Pano and Ceph. This not only allows you to capture an optimal image from each sensor, but it also creates an efficient workflow.

One Shot Ceph
With One Shot Ceph, you can acquire high quality images with low x-ray dosage. Plus, short scan time markedly reduces motion artifacts.

Cephalometric (One shot type)
Superior image quality will be delivered using the a-Si TFT sensors. Three different Ceph image sizes reduce unnecessary x-ray dosage and scan the ideal area of cranial anatomy for your diagnosis and treatment planning.

Beyond 2D, depth added panorama.

Insight PAN

• The next evolutionary step forward in panoramic imaging with Insight Pan

Rapid Ceph

• 1.9 second acquisition time produces superb image quality
• Reduced motion artifacts and faster workflow

User friendly EzDent-i Software

• Powerful diagnostic value with Insight feature
• Complete solution for consultation
• Easy to learn, easy to use

Advanced image solution with insight pan
The next evolutionary step forward in panoramic imaging. The PaX-i Insight is capable of taking a multi-layered panoramic image called an Insight Pan which provides a unique, in-depth look across a single focal trough. Since each patient may have a slightly different arch, conventional panoramic images may occasionally miss important details which land outside of a single focal layer. Insight Pans are capable of capturing multiple-layered images, ensuring that all details are captured in a depth-added panoramic image.

Minimise motion artifacts with Rapid Ceph technology
The next step in cephalometric technology, Vatech’s new Rapid Ceph minimises motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images.

EzDent-i, quick and easy dental imaging software
EzDent-i provides a wide array of functions designed to streamline the dental practice’s workflow. It conveniently provides tools for specialised diagnosis and consultation via Vatech’s easy-to-use user interface.

What is insight?
The next-generation in panoramic technology, Insight Pans allow doctors to obtain never before seen, in-depth diagnostic information from the anterior to posterior on a digital panoramic image.

The Insight feature allows doctors to explore their region of interest, giving them the capability to find mesiobuccal, distobuccal, and even palatal root information.

A new dimension beyond your expectations.

The advanced imaging solution for accurate dental diagnosis
The Vatech A9 provides the most precise and high quality panoramic images by combining image processing and accumulated experience in dental imaging from Vatech. This will increase your diagnostic accuracy for improved treatment planning and patient satisfaction.

Integral FOV for 3D image
8×8 images enable fundamental diagnoses and treatment planning, including both the maxillary and mandibular areas, in a single scan. It is useful for complex implant surgeries and left/right TMJ diagnoses.

Minimise motion artifacts with Rapid Ceph technology
The next step in cephalometric technology, Vatech’s new Rapid Ceph minimises motion artifacts and enables faster diagnostic workflow while providing the highest quality digital images. Great clinical care with Rapid Ceph technology.

The innovative FOV of Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.

Practical 3-in-1 system

• CBCT (with Auto Pano), Panoramic, Cephalometric

SMART innovation for accurate diagnosis

• Anatomical FOV 12×9
• ART-V

SMART innovation for low dose

• 1 scan, 2 images
• Low dose and high image quality

3D scanning for model

• CAD/CAM integration
• Specially designed jig

Anatomical FOV, 12×9
The innovative FOV of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.

ART-V (Artifact Reduction Technology from Vatech)
ART-V finds out the location of metals when radiation is exposed. And it deletes the metal in projection data artificially and fills that part with the similar values to surrounding area. At the same time, it remembers the original location and status of metals and then it in paints the area with a new value which has no streaks.

Professional diagnostic value with panoramic images
Smart Plus provides the most precise and high quality panoramic image. A clear and sharp panoramic image delivers better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

Professional diagnostic value with cephalometric images
Smart Plus provides optimal images with an exclusively designed sensor for cephalometric diagnosis.

Scan type cephalometric
Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.

New Green Innovation

The advanced 4-in-1 digital x-ray imaging system
Green X is an advanced 4-in-1 digital x-ray imaging system that incorporates Pano, Ceph (optional), CBCT, and Model Scan. With Vatech’s extensive experience in the dental imaging field, the Green X provides high-quality images with lower radiation by combining image processing. This will improve your diagnostic accuracy and lead to increased treatment planning and patient satisfaction.

Multi FOV selection
Green X offers a range of selectable fields of view. The Multi FOV option allows users to select the optimum FOV mode while minimising exposure to areas that are not in the region of interest. The selection includes the following FOV sizes for diagnostic needs: 16×9, 12×9, 8×9, 8×5, 5×5 and 4×4. These options cover the full arch region, sinus and left/right TMJ, and suits most oral surgery cases and multiple implant surgeries.

Green scan time
Due to its scan time, the Green X minimises motion artifact and enables faster workflow. It produces superb diagnostic images, which will be a source of pride for any dental practice. Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.

Endo mode with high resolution
With its 4cm x 4cm volume mode and 49.5 micron voxel size, the Endo mode will optimize treatment of highly-focused regions of interest. It is ideal for endodontic use because the dentist is able to achieve an extraordinary image in a high-resolution voxel size.

Insight 2.0
The Insight Pan is capable of taking a multilayered panoramic image, called an Insight Pan, which provides a unique in-depth look across a single focal trough. Insight 2.0 has an upgraded free FOV feature so you will be able to capture just the area of interest.

3D scanning for model
3D model scan enables users to store plasters as digital models.

The next green innovation.

4-in-1 digital (Pano / Ceph / CBCT / Model)
The Green 16 is an advanced 4-in-1 digital x-ray imaging system that incorporates Pano, Ceph (Optional), CBCT and Model Scan. It provides high quality images with lower radiation by combining image processing and accumulated experience in dental imaging from Vatech, improving your diagnostic accuracy with increased treatment planning and patient satisfaction.

Multi FOV selection
The Green 16 offers a range of selectable fields of view. The Multi FOV enables the user to select the optimal FOV mode and minimises exposure to areas not in the region of interest. Select the proper FOV size among 18×10, 16×9, 13×10, 12×9, 8×9, and 5×5 based on a particular diagnostic need. It covers the full arch region, sinus, and left/right TMJ and suits most oral surgery cases as well as multiple implant surgeries.

Green scan time
The Green 16 minimizes motion artifact and enables faster workflow due to its scan time. It produces superb diagnostic images, which will be a source of pride for any dental practice. Focusing on the highest quality of patient care, Vatech strives to improve the health and safety of your patients.

Low dose and high image quality
Green 16 provides the most precise and high quality panoramic image. Clear and sharp panoramic image deliver better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

The ART-V
Metal artifact hinders visualisation and naturally reduces diagnostic confidence. Clear images cause less stress and provide more confidence which lead to accurate diagnosis for implant planning. ART-V is the new name of Vatech’s MAR function (Artifact Reduction Technology of Vatech).

Raising the bar for excellence, Vatech’s new premium solution, Green 21. Multi-modality CBCT, most comprehensive set of FOV sizes collimated from 21×19 down to 8×8, to provide a whole array of diagnostic tools to the discerning clinician.

Large 21×19 FOV for complete diagnostic imaging needs

• Oral and maxillofacial surgery
• Facial reconstructions
• Orthodontic treatment planning
• Complex orthognathic cases

The optimal solution for airway and ENT diagnosis
Green 21 provides ENT mode (Airway/TB&PNS) for ENT specialists. The fields of view (17×11) are set based on patients’ most common cases such as cholesteatoma, chronic sinusitis and sleep apnea syndrome.

Professional diagnostic value with panoramic images
Green21 provides the most precise and high quality panoramic image. Clear and sharp panoramic images deliver better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

Magic Pan
Magic Pan creates a more superb panorama image. It is acquired through the elimination of distorted and blurred images caused by improper patient positioning (Optional).

Automatically generates up to 6 types of images in 1 scan

• CBCT
• Auto Pano
• Auto Ceph (PA)
• Auto Ceph (Lateral)
• Auto Ceph (SMV)
• Auto Ceph (Waters’ view)

Vatech Imaging Suite serves as a highly effective aid throughout the diagnosis, treatment, and treatment planning process. Easy-to-use software, with workflow efficiency improvements.

Vatech images are available instantly after exposure. If an image needs to be retaken, it can be done immediately. The ability to magnify areas of concern, apply image enhancements to reveal further details, and add annotations to images provide further diagnostic support.

In addition, patients respond favourably to digital X-ray software images. The larger, more detailed picture allows them a better understanding of the diagnosis and your treatment recommendations. Plus, sharing digital images with colleagues is easy.

More Productivity

The software’s intuitive interface and its outstanding automation will let you breeze through X-ray procedures. Most common tasks are done in two clicks or less. Built-in X-ray sequences allow taking series with the fewest holder changes. With the introduction of Vatech, your workflow is further simplified with drag-and-drop tooth numbering and the new history view which lets you sort a patient’s images by date for fast search and retrieval of a particular image from the past.

When the sensor detects radiation, the image is automatically saved, dated, tooth numbered, correctly oriented and mounted, all without the need to return to the keyboard. Images are conveniently displayed in their anatomical location.

As a powerful, centralised imaging hub for all patient images, Vatech manages all digital images, including intra- and extra-oral radiographs, as well as intra- and extra-oral photographs.

Stored images can instantly be organised, retrieved, printed and shared with patients, colleagues and insurance carriers. You can export and e-mail a full-mouth or bitewing series, including annotations, as individual files or as a single image.

Protect your most important resources, you, your staff and patients with Vatech’s new EzPure UV Air Purifier.

The Vatech EzPure UV Air Purifier has been designed for the disinfection of air in closed environments.  The device uses the germicidal ultraviolet radiation produced by a set of 4 low pressure mercury vapor lamps enclosed within a chamber facilitating germicidal action in larger environments, reaching maximum efficacy in a shorter time.

The Benefits
Solid aluminium construction

No risk to people
The EzPure UV can work around the clock because it does no disperse radiation in the environment and is therefore totally safe

No noise
Operation is noise-free, the forced air circulation is ensured by special silent fans

No maintenance
EzPure UV does not use expensive antibacterial filters but simple dust filters as the germicidal action is guaranteed by the lamps

Programmable
Thanks to a simple display

Maximum Effectiveness
Thanks to UV-C rays

Flexibility in all environments
EzPure UV can be installed on the wall or on a stand (optional), it can be positioned in all types of rooms with the ability to move it when you wish.
