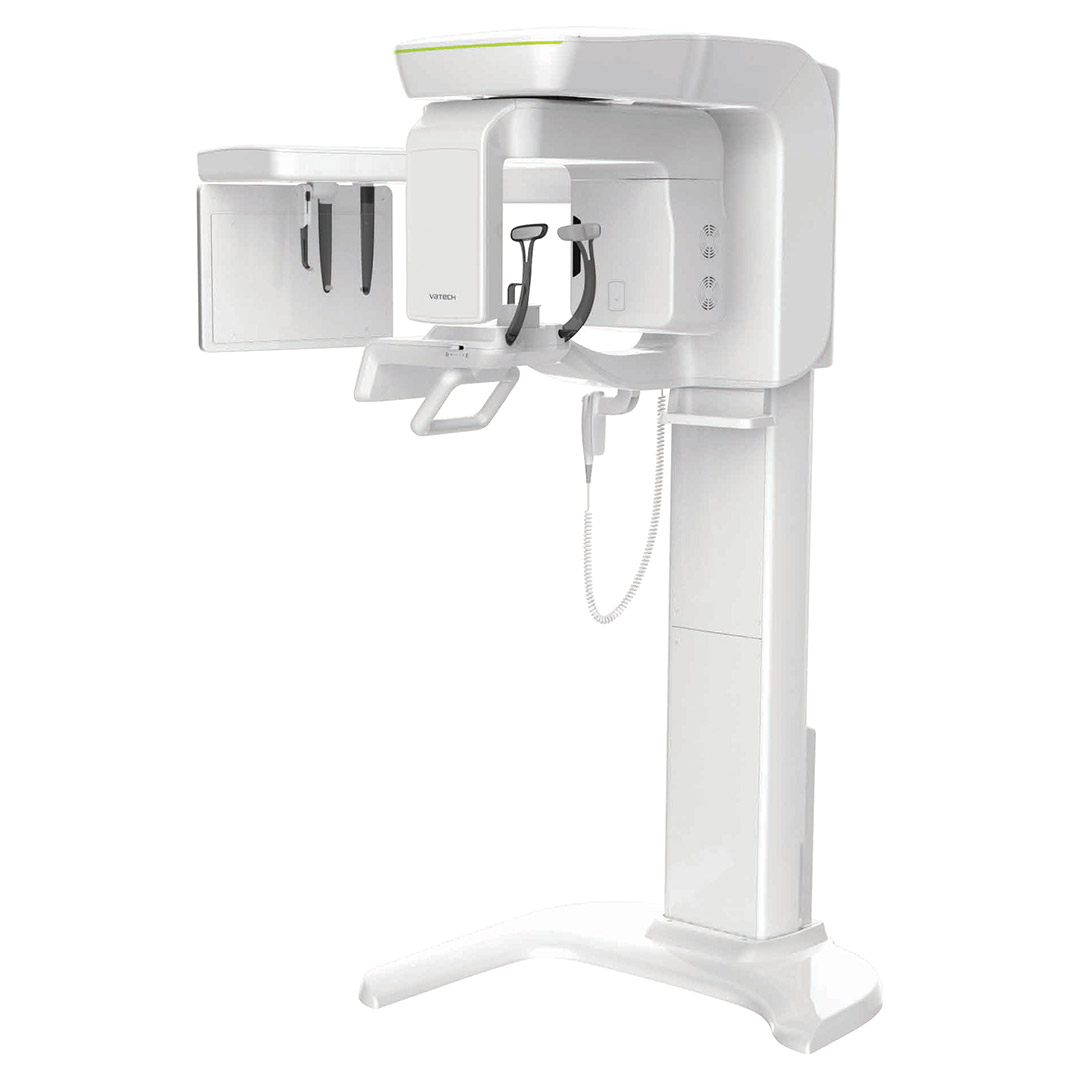

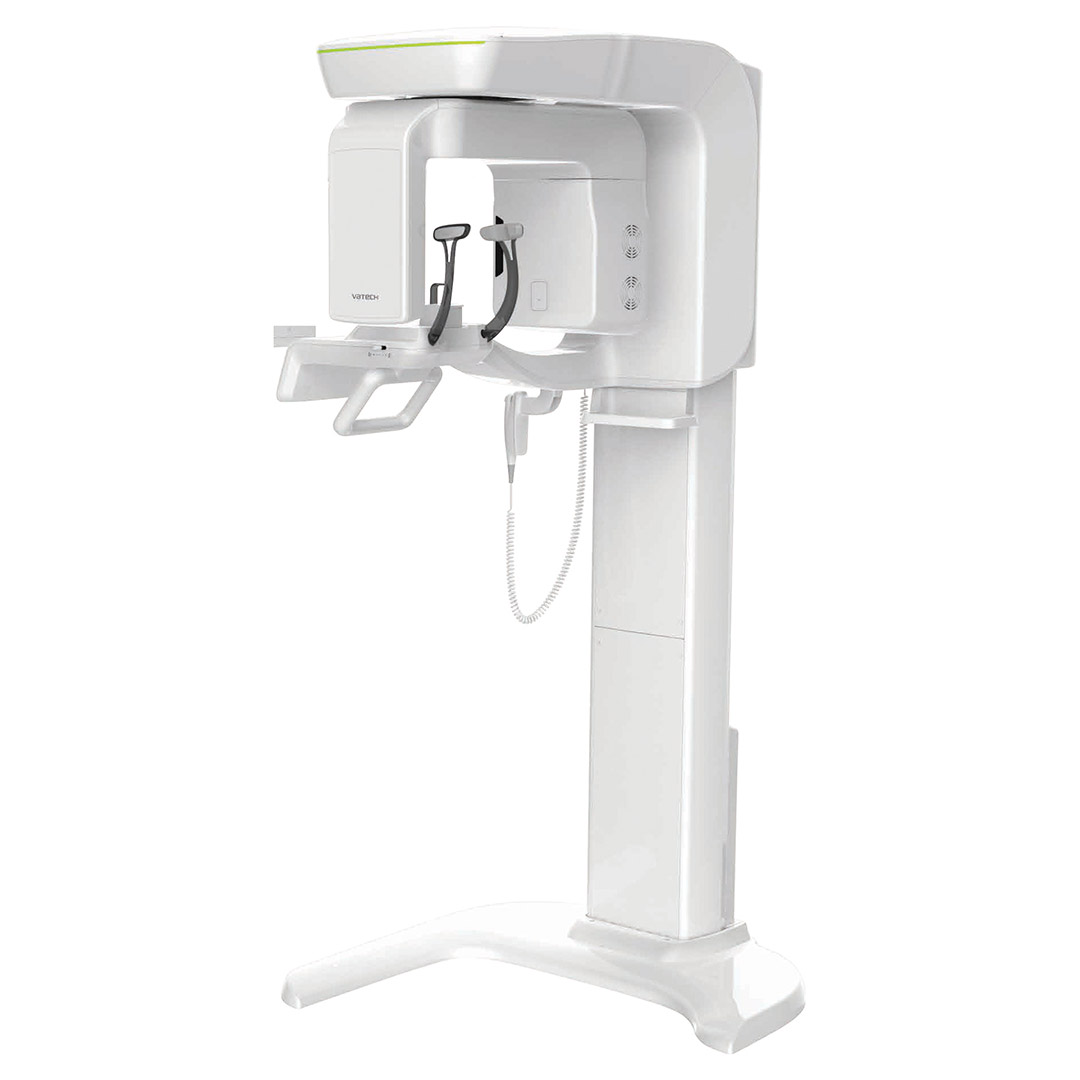

Vatech Smart Plus 3D CBCT

Vatech Smart Plus 3D CBCT
The innovative FOV of Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices with the same FOV.

Practical 3 in 1 system
> CBCT (with Auto Pano), Panoramic, Cephalometric

SMART innovation for accurate diagnosis
> Anatomical FOV 12×9
> ART-V

SMART innovation for low dose
> 1 scan, 2 images
> Low dose and high image quality

3D scanning for model
> CAD/CAM integration
> Specially designed jig

Anatomical FOV, 12×9
The innovative FOV of the Smart Plus provides an arch-shaped volume, which shows a wider view of dentition compared to other devices of the same FOV. Normally, a FOV 10×8.5 image shows tooth #8. However, when the tooth is lying on its side, there is a high possibility that the tooth will be cut out of the image. The “arch-shaped volume” eliminates this possibility and shows the hidden dentition area.

ART-V (Artifact Reduction Technology from Vatech)
ART-V finds out the location of metals when radiation is exposed. And it deletes the metal in projection data artificially and fills that part with the similar values to surrounding area. At the same time, it remembers the original location and status of metals and then it in paints the area with a new value which has no streaks.

Professional diagnostic value with panoramic images
Smart Plus provides the most precise and high quality panoramic image. A clear and sharp panoramic image delivers better diagnostics. Enhanced details especially in the anterior and dental roots can be viewed. These consistently high quality images will become the new standard of panoramic imaging.

Professional diagnostic value with cephalometric images
Smart Plus provides optimal images with an exclusively designed sensor for cephalometric diagnosis.

Scan type cephalometric
Scan type cephalometric offers two image sizes, LAT and FULL LAT, you can choose one of them based on the purposes of your diagnostic needs.
