Durr Power Tower View Compressor & Dry Suction System V 1200 S 400 Volt 3 Phase 50Hz
Enquire For Pricing

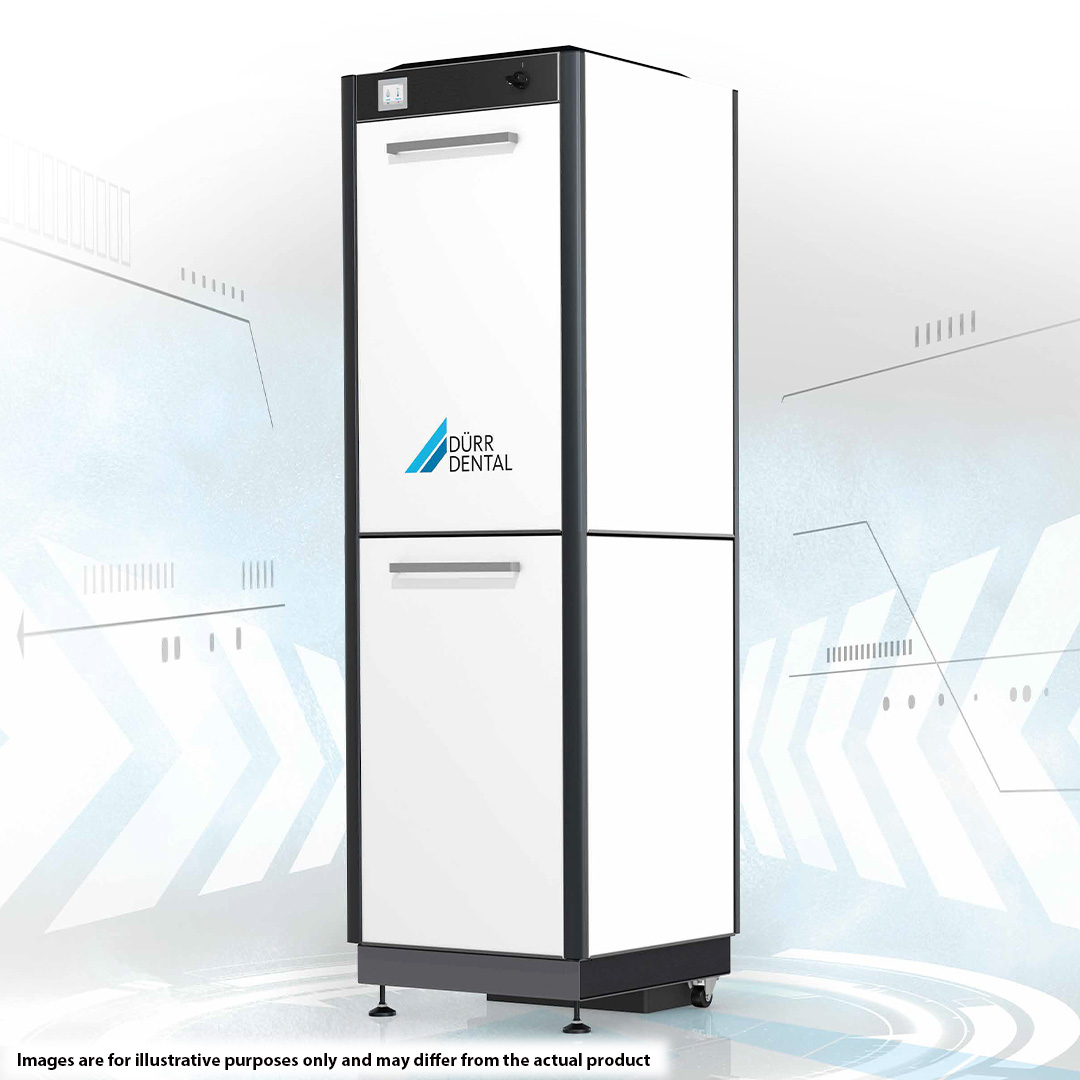

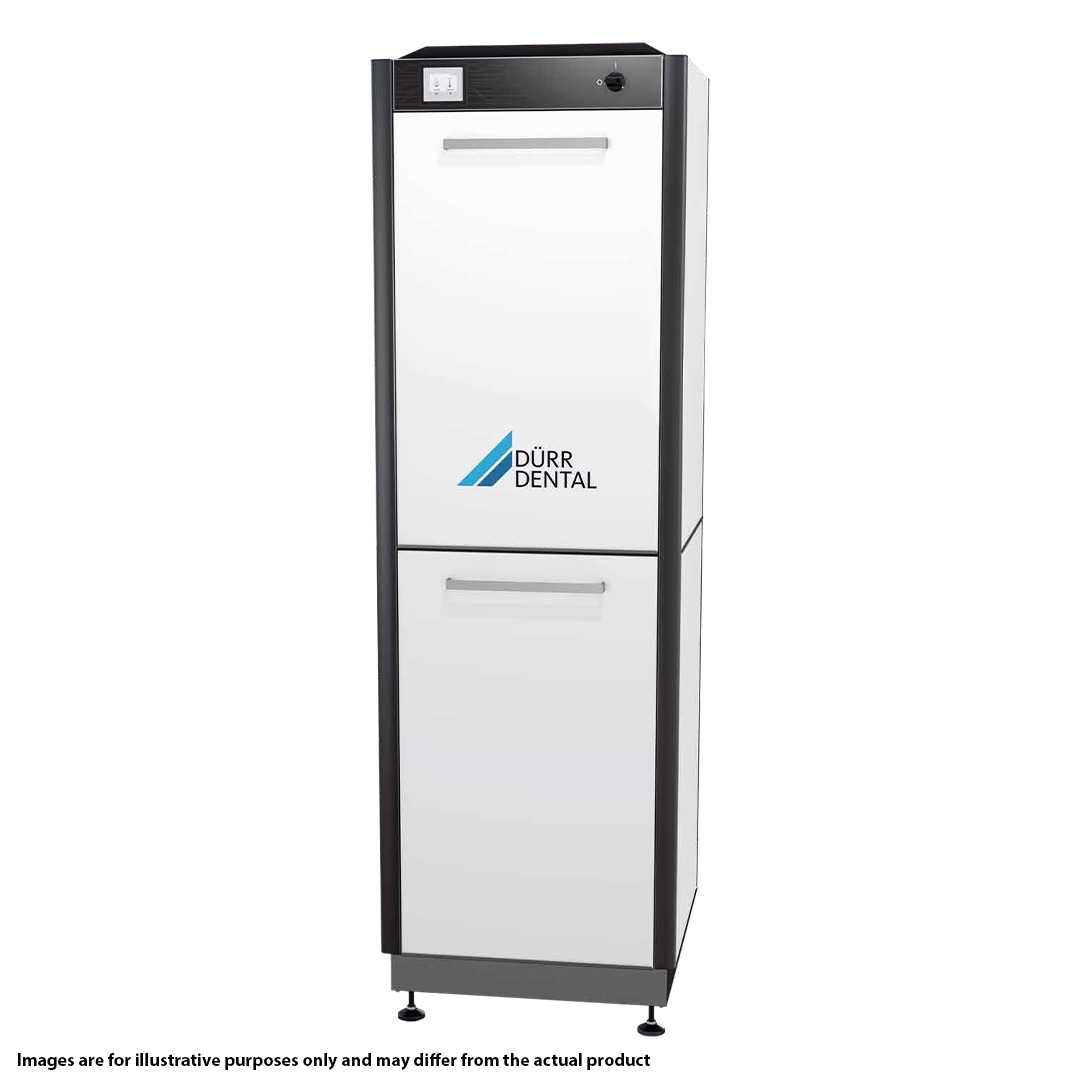

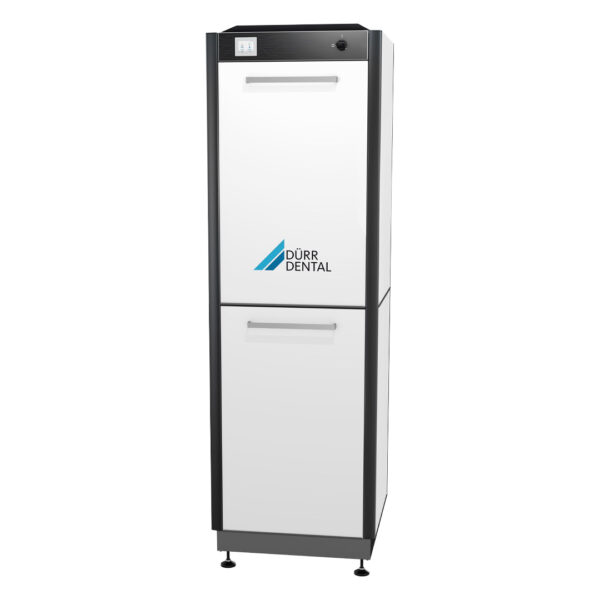

Durr Power Tower View
Complete practice supply in a compact footprint.
The perfect solution for every demand
The compact and quiet Power Tower View can be installed flexibly in the surgery with a footprint of just 0.4 m2, saving valuable space over the installation of equivalent separate units, a real advantage given the expense of current rental costs. But there are other reasons that make this unit the perfect fit for any surgery. As impressive as its striking, high-quality design is, in terms of operating noise you will barely notice this unit when it is running. This leaves you free to position the unit anywhere you want in the surgery. Thanks to the many individual configuration options, Power Tower View is a flexible solution that will grow with the surgery and adapt effortlessly to new circumstances.
Compressed air at the top, suction at the bottom
At the top is where the heart of the surgery beats, this is where the powerful and durable compressor reliably delivers oil-free, dry and hygienic compressed air. The effective Durr Dental suction systems, in either dry or wet variants, for continuous and ergonomic treatments safe from the risk of infection are housed at the bottom.
A solution with options for more
The modular concept of Power Tower View offers flexible options for upgrading and modification. For example, you can retrofit an additional compressor unit in order to boost potential output or create redundancy for increased operational reliability.
One for all, and everything in a single unit
Power Tower View combines a compressor unit, the compressed air tank, the suction unit, the membrane drying unit and, if required, also the amalgam separator into a single, compact unit offering perfect thermal and physical conditions. The modular concept will fulfil numerous individual requirements and allows the system to be set up for anything from 1 to 4 therapists, providing the perfect solution for any size of surgery.
Call For Availability
Brand
Brand | Durr |
---|
Description
Components
1 x Cabinet Module Power Tower View with noise-absorbing housing
1 x Compressor Aggregate Duo
1 x V 1200 S Combination Suction Unit
1 x Membrane Drying Unit
Specifications
Operators (Users): 4 Operators/6 Rooms
Voltage (V): 400
Power Phase: 3
Frequency (Hz): 50
Output at 5 Bar (L/min): 115
Tank Capacity (L): 20
Noise Level at 5 Bar in Cabinet (dBA): 53
Dimensions (HxWxD): 208cm x 64cm x 61cm
Weight (kg): 265
