Belmont PHOT-xIIs Intraoral X-Ray
The PHOT-xIIs produces superb radiographic images and minimises patient exposure to radiation. Its sleek, aesthetic design makes it a natural choice for any dental operatory.

Belmont’s high frequency technology allows for
> High resolution image by a small focal spot
> Reduced skin dosage with optimum radiation level for every diagnostic need
> Easy to position compact tube head
> Ideal matching for digital imaging system

Features & Benefits
> Small 0.4 focal spot value for the sharpest image possible
> Reduced radiation dosage. PHOT-xIIs utilises a Direct Current (DC) generator to minimise radiation absorbed by patients. In addition, there are 36 programmable exposure time settings between 0.01 to 2.0 seconds to fine tune the precise amount of radiation required to produce an excellent radiographic image.

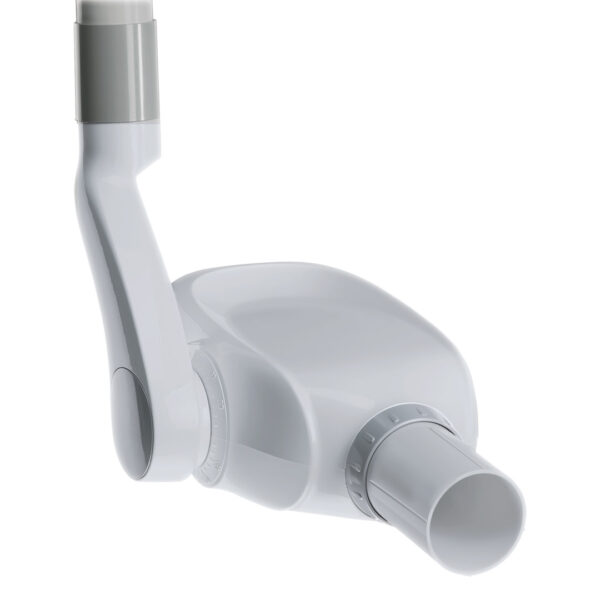

> Easy to position compact tube head. The tube head is lightweight, compact and easy to hold enabling the operator to align the tube head accurately every time.
> Slim and lightweight arm. The PHOT-xIIs arm design and rigidity reduces vibration and facilitates the smooth and easy positioning of the tube head ensuring it stays in position once released.
> Optimum radiation level for every patient. The operation is simple, select patient type and tooth type, then press the exposure switch. The exposure time can also be adjusted manually. After the exposure, the radiation output can be displayed in the window.
> Tube voltage selection. The PHOT-xIIs provides 2 tube voltage settings to optimize imaging for specific purposes. The 60 kV setting provides balanced contrast for general caries and excellent definition and detail for periapical and bone structure imaging while the 70 kV setting provides excellent diagnostic imaging for periodontal disease examination with a wider latitude and longer grey scale.

Five mounting options

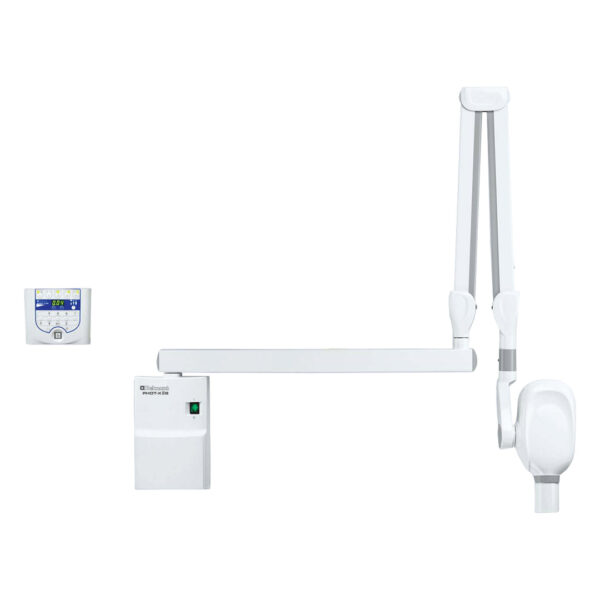

> Wall mount
> Mobile mount
> Ceiling mount
> Floor mount
> Room type with stool
